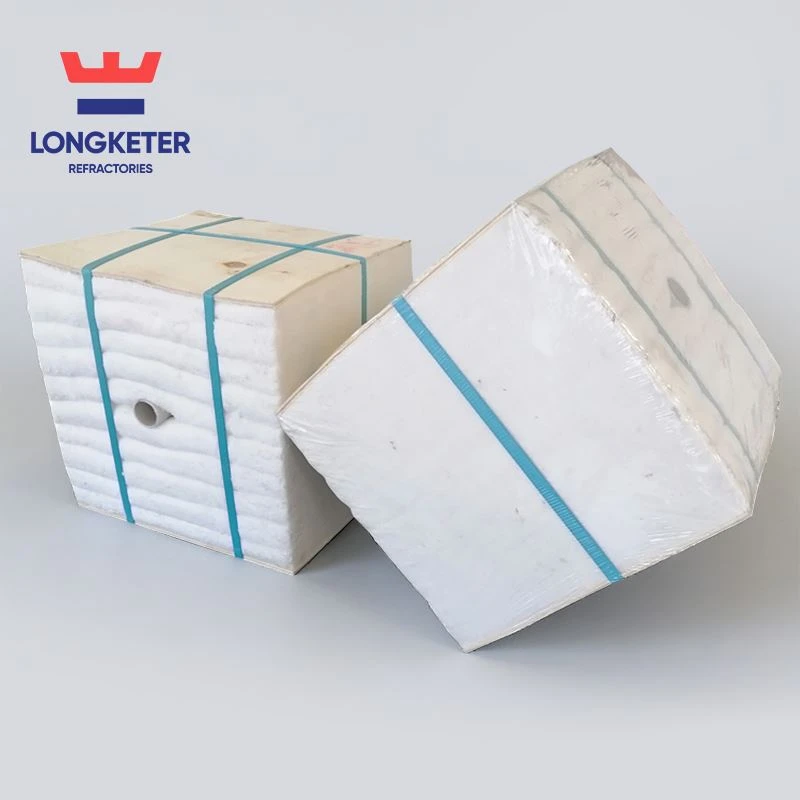

Ceramic Fiber Modules

The ceramic fiber modules is made of ceramic fiber blankets of corresponding materials and processed by special mechanical equipment according to the structure and size of the fiber components. It maintains a certain proportion of compression to ensure that after the wall lining of the ceramic fiber components is built, the ceramic fiber components expand in different directions, so that the ceramic fiber components are squeezed into a seamless whole. The ceramic fiber components are directly fixed on the industrial furnace shell through various forms of anchors.

The ceramic fiber modules is a new refractory lining product introduced to simplify and speed up the construction of the kiln and improve the integrity of the lining. The product is white in color and regular in size, and can be directly fixed on the anchor nails of the steel plate of the industrial kiln shell. . Classification temperature 1050-1400°C.

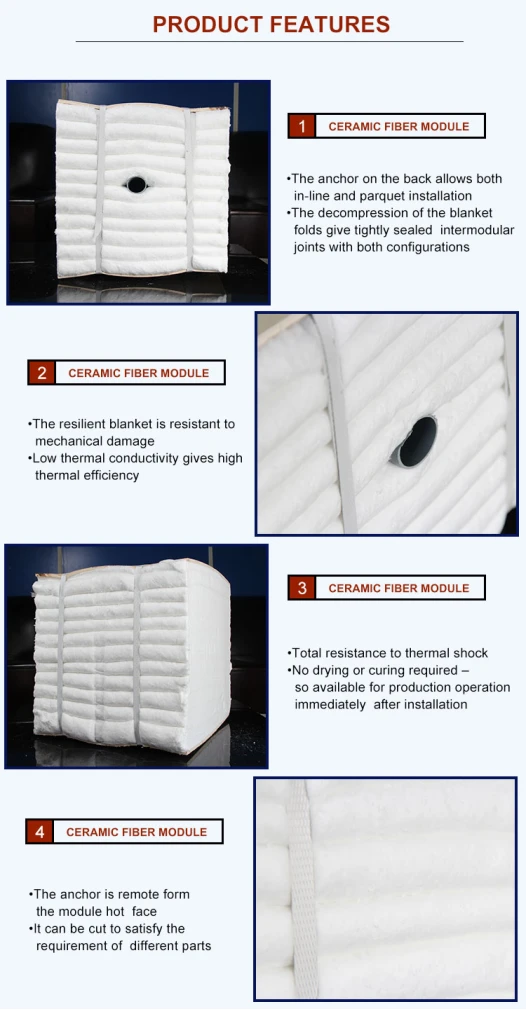

The ceramic fiber modules has the excellent characteristics of ceramic fiber, and the fiber module is always in the state of expansion to compensate for thermal shrinkage, so that the overall sealing of the furnace body is high; it has the ability to resist thermal shock; the lining does not need to be dried and maintained, and can be put into use immediately after installation ; The anchoring system is far away from the hot surface of the furnace body, so that the metal anchors are at a relatively low safe temperature.

Excellent chemical stability; excellent thermal stability; excellent elasticity, the ceramic fiber module is in a pre-compressed state, after the furnace lining is built, the expansion of the ceramic fiber module makes the furnace lining seamless, and can compensate for the shrinkage of the fiber furnace lining to improve The thermal insulation performance of the fiber lining has good overall performance; excellent thermal stability and thermal shock resistance; the ceramic fiber module is installed quickly, and the anchor is set on the cold surface of the wall lining, which can reduce the requirements for the material of the anchor.

Lining insulation of kiln in petrochemical industry;

Lining insulation of kiln in metallurgical industry;

Lining insulation of kilns in ceramics, glass and other building materials industries;

Lining insulation of heat treatment furnaces in the heat treatment industry;

Other industrial furnace linings.
