Submerged Entry Nozzle

Submerged Entry Nozzle

Submerged entry nozzle plays a role in protecting the molten steel from being oxidized by the ambient air when it flows from the tundish into the crystallizer. It also plays a role in evenly distributing the molten steel into the crystallizer and controlling the flow of the molten steel in the crystallizer. LKT series submerged entry nozzle has been used in more than 30 steel mills across the country; and the overall contracting model of tundish has been implemented in more than 10 enterprises. Our main products include: Ladle shroud, Submerged Entry Nozzle, Tundish Nozzle, Monoblock stopper, refractory bricks, Well block and other refractory materials. LKT series Submerged Entry Nozzle has good slag resistance, long service life, and anti-clogging characteristics. Excellent thermal shock resistance: Specifically designed to withstand the drastic temperature fluctuations encountered during the start of casting, ensuring freedom from cracking or spalling. Superior resistance to erosion and corrosion: Utilizes advanced alumina-carbon and zirconia-insert formulations to effectively withstand molten steel erosion and chemical corrosion at the slag line. lumina clogging resistance technology: Features specialized inner lining or argon-injection designs to effectively prevent alumina buildup, ensuring extended continuous casting operations. High mechanical strength: Manufactured using isostatic pressing technology to ensure a dense, uniform microstructure and precise dimensions, allowing for a perfect fit with flow control mechanisms. Optimized flow dynamics: Offers a wide range of nozzle configurations and specifications designed to optimize fluid dynamics and enhance the quality of molten steel within the mold.
Send Inquiry
Description
Technical Parameters

product-1000-554

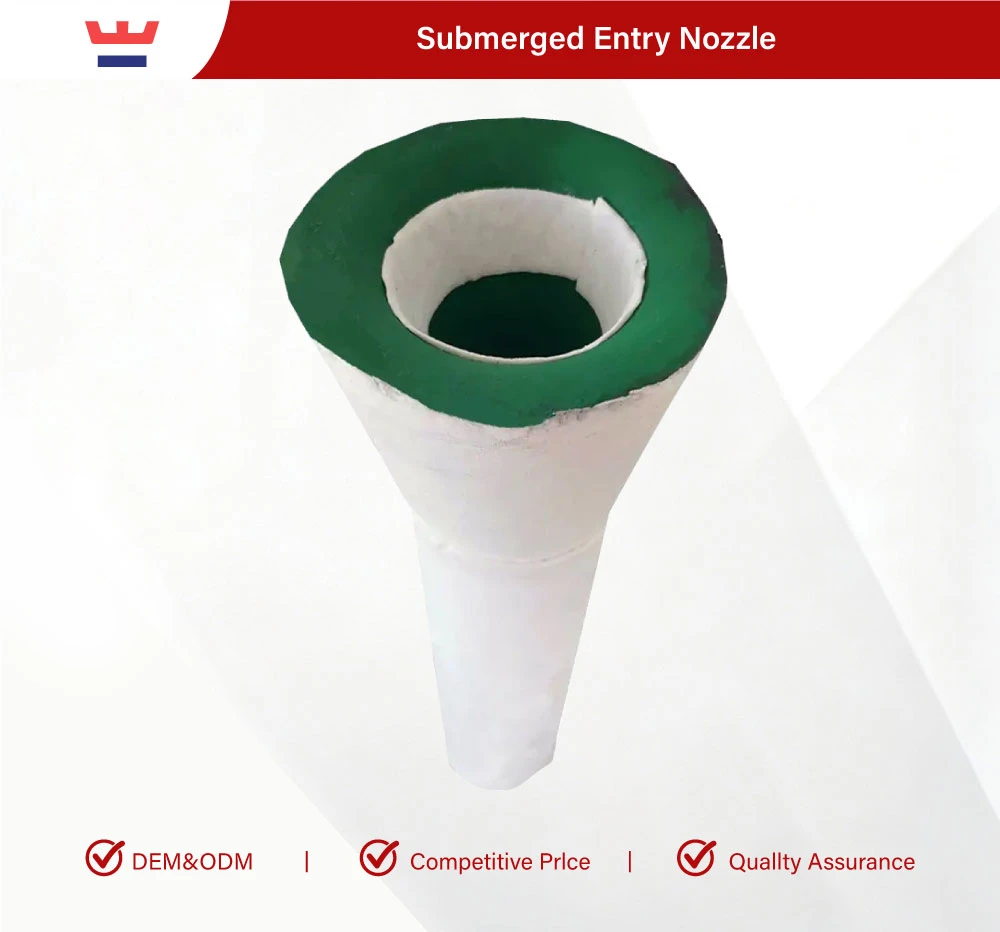

product-1000-932

ongkete Refractory Submerged Entry Nozzle (SEN) for Continuous Casting

The submerged entry nozzle is the pressure channel that carries steel from the tundish down into the mould. It is never used alone. At Longkete, we design and supply SENs as matched sets with the other functional refractories on the tundish, because a nozzle that performs well in isolation but fights against the stopper or metering nozzle is a nozzle that will not last in real casting conditions.

Matching configurations we supply

Longkete submerged entry nozzles are engineered as part of a complete flow-control package. Common matched structures include:

Monoblock stopper + submerged entry nozzle - for ladle shroud and stopper-controlled tundish operations.

Tundish metering nozzle + submerged entry nozzle - where flow is regulated at the tundish well rather than by a stopper.

Monolithic tundish nozzle + submerged entry nozzle - one-piece lining for simpler installation and lower joint leakage risk.

Exchangeable tundish nozzle + submerged entry nozzle - for quick-change setups where nozzle swap-out has to happen without stopping the tundish.

Each set is specified together, with the bore, port angle and outer profile chosen for the steel grade, casting speed and mould width the customer is actually running.

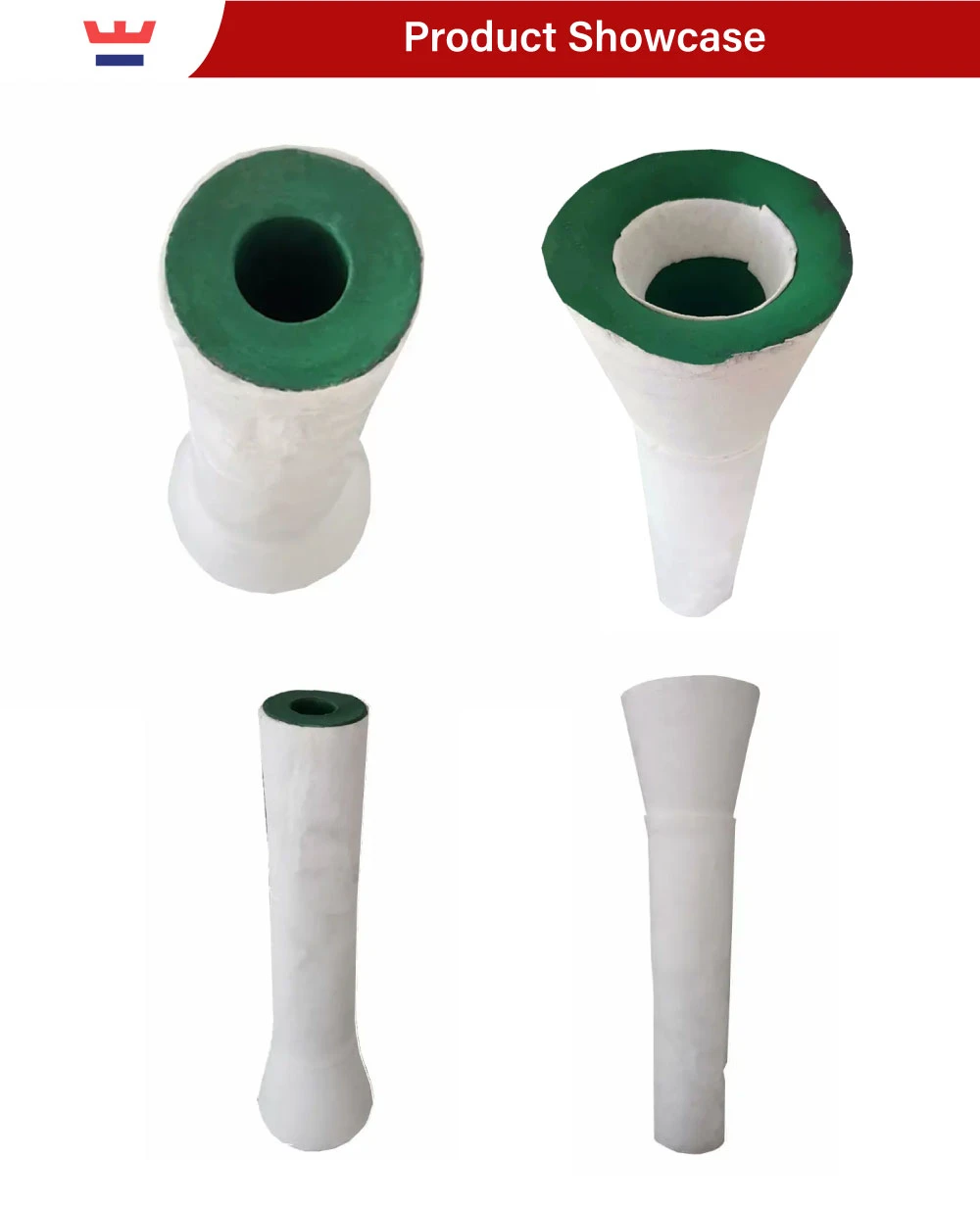

product-1000-1232



Why a refractory SEN replaces a metal spout

At continuous casting temperatures, no metal spout survives long. Liquid steel attacks conventional metal nozzles within minutes: the bore erodes, the wall oxidises, and the discharge profile distorts - which immediately shows up as an unstable meniscus, slag entrainment and a rising breakout risk. Refractory submerged entry nozzles were developed precisely to remove this failure mode.

The Longkete SEN is formed from pressed and fired refractory bodies - typically alumina-graphite, zirconia-graphite or alumina-zirconia-graphite grades, selected for the steel being cast. The dense carbon-bonded structure behaves fundamentally differently from a metal spout: it does not soften, does not wet out with steel, and resists both chemical slag attack and physical melt scouring along the bore and ports.

What this means on the casting floor

Longer campaign life. A metal spout corrodes, hardens and deforms within a short pour; leakage rate climbs sharply and the part has to be pulled. A properly matched Longkete SEN holds its bore geometry and port shape through far more heats, so the caster runs longer between nozzle changes and the schedule stays stable.

Stable, predictable steel flow. Because the bore and ports hold their shape, the meniscus in the mould behaves the way the casting model expects. Slag entrainment, nozzle clogging surprises and flow asymmetry are reduced - directly improving surface quality on the strand.

Resistance to combined erosion. Real failure is rarely a single mechanism: it is chemical attack from slag and steel plus physical scouring from high-velocity melt, often acting together. The carbon-bonded refractory grades we use are chosen to hold up under that combined attack, not just under one lab test.

Safety in operation. Longkete SENs are formed from corrosion-stable refractory compositions. They do not release harmful volatiles during preheating and casting, and they do not contribute toxic residues to the working environment. That is a deliberate design choice, not a side effect.

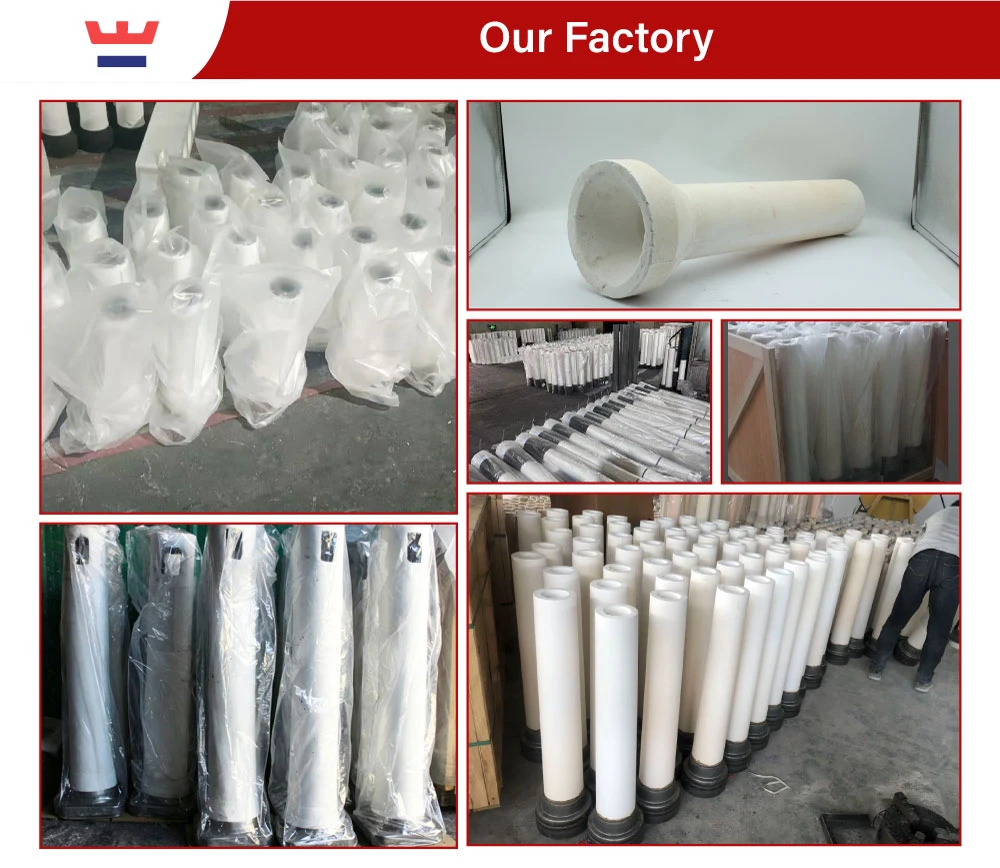

product-1000-868

Working with Longkete

We specify each SEN against the customer's actual casting data - steel grade, tundish superheat, casting speed, number of heats per sequence and known clogging history. From there we recommend the graphite level, any zirconia or slag-line protection, and the port geometry that best matches the existing stopper or metering nozzle. Refractory submerged entry nozzles are precision flow-control parts, not catalogue items; getting the material and geometry right is what turns a replacement part into one that protects the caster's campaign.

If you are seeing shortened nozzle life, unexpected bore clogging or variable strand quality, send us the current nozzle drawing, steel grade and average heats per sequence - we will review the design and propose a matched configuration.



FAQ

Q1: Are you manufacturing?

A1:LONG KETER is a manufacturer with more than 16 years of experience in refractory industry, welcome to visit us.


Q2: Are there free samples?
A2: Yes, free samples are provided. The partners should bear the shipping cost. Please tell us which product you are interested in for more details.



Q3: Can I customize it?
A3: Yes, LONG KETER factory supports customized refractory bricks in size, shape, chemical composition, etc. There are more than 20 engineers OEM/ODM ready to customize solutions for you.



Q4: I have a project, I want the whole solution, can you prove it?
A4: No problem, we have a professional technical team and have very rich experience in the refractory industry, just need you to send us some requirements of your project, we can provide one-stop service from solution.
